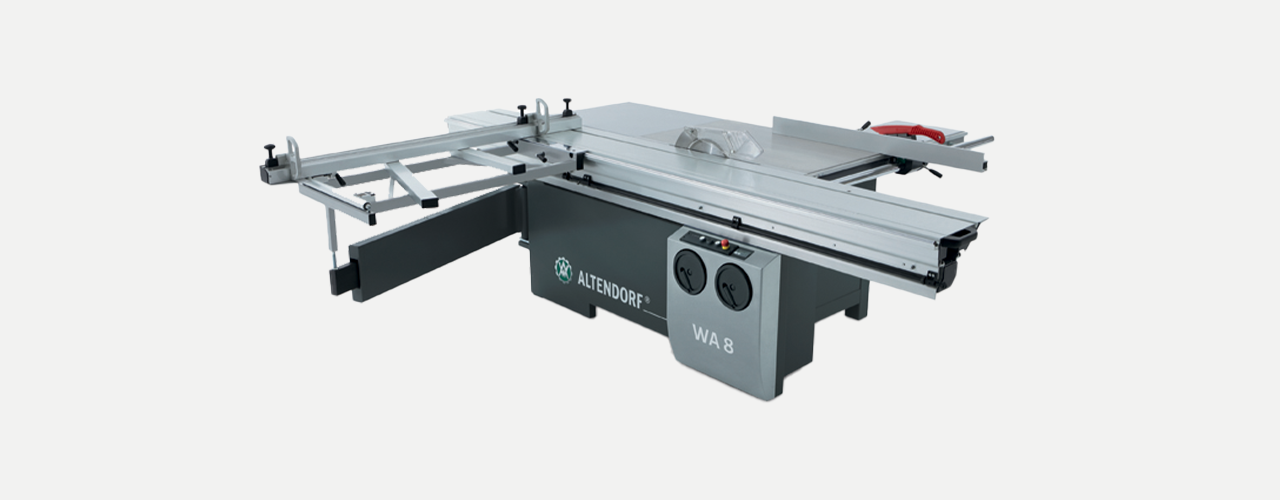

Easy to operate and providing accurate and clean cuts, the Altendorf WA 8 NT serves as the perfect machine meant for cutting panels into precise dimensions. These machines come with a control panel that is quite simple to use. The rip fence as well as the crosscut fence can be set up very easily.
| Equipment for The WA 8 NT |
|---|
| Manual rise/fall adjustment of the main saw blade, non-tilting saw unit |
| Sliding table length 2000, 2600, 3000 or 3200 mm |
| Rip fence with manual adjustment, cutting width 1000 or 1300mm |
| Crosscut fence, crosscuts to 3200 mm |
| Motor rating 5.5 kW (7.5 HP), with three speeds 3/4/5000 rpm, manually adjusted |
| Cutting height max. 100 mm |

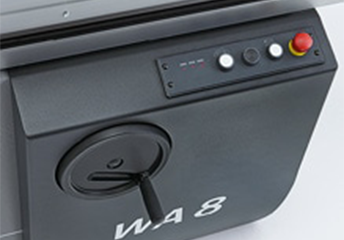

The controls that are mounted on the machine frame panel are identified clearly and are quite easy to operate. Rise and fall of main blade is achieved via handwheel.

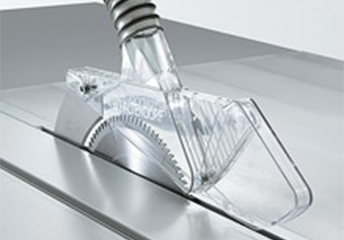

The protection hood is mounted by a riving knife and allows 350 mm of maximum saw blade diameter along with 100 mm of maximum cutting height.

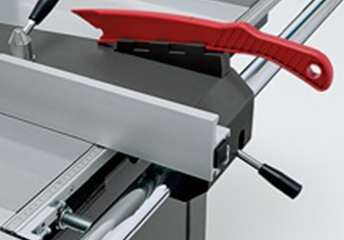

The rip fence is rather smooth and quite precise to adjust. It comes with hard chromeplated round bar which ensures effective and smooth movement of the fence. If you are looking to properly divide large panels, simply swing away the rip fence under the machine table level.

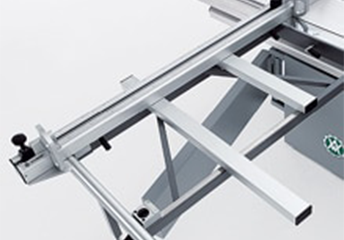

The crosscut fence is robustly mounted and enables extremely precise cutting results of 90° angles. All the settings are very easy to read from the slanted scales. Flip stops are quite robust and wholly free of play. They can also be easily slid individually along full crosscutting range.
