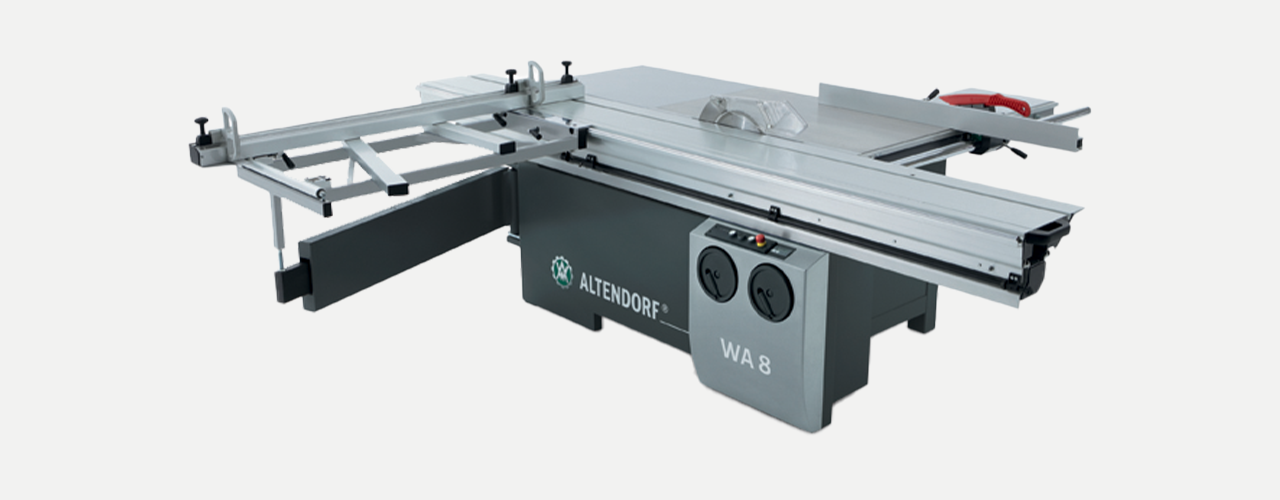

The Altendorf WA 8 T really adds a great touch of class and elegance to any workshop. By using the manual tilt that is easy to operate and smooth height adjustment function of saw blade, these machines can also be used for achieving maximum efficiency with even complex jobs.
| Equipment for The WA 8 T |
|---|
| Manual rise/fall and tilt adjustment of the main saw blade |
| Sliding table length 2000mm, 2600mm, 3000mm or 3200mm |
| Rip fence with manual adjustment, cutting width 1000mm or 1300mm |
| Crosscut fence, crosscuts to 3200mm |
| Motor rating 5.5kW (7.5HP), with three speeds 3/4/5000rpm, manually adjusted |
| Cutting height max. 100mm |

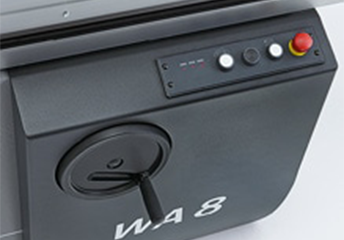

The control panel established on machine frame makes use of a digital display of tilt angle. Rise and fall adjustment and the tilt adjustment of machine blade are achieved via a handwheel.

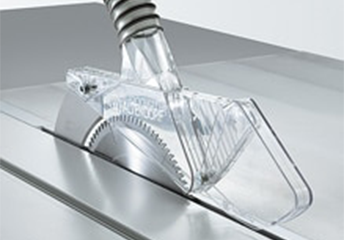

The protection hood is mounted by a riving knife and allows 350 mm of maximum saw blade diameter along with 100 mm of maximum cutting height.
The rip fence is rather smooth and quite precise to adjust. It comes with hard chromeplated round bar which ensures effective and smooth movement of the fence. If you are looking to properly divide large panels, simply swing away the rip fence under the machine table level.

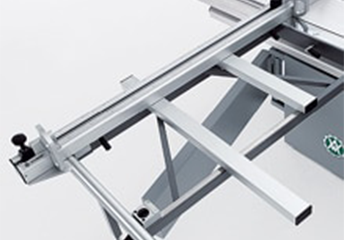

The crosscut fence is robustly mounted and enables extremely precise cutting results of 90° angles. All the settings are very easy to read from the slanted scales. Flip stops are quite robust and wholly free of play. They can also be easily slid individually along full crosscutting range.
