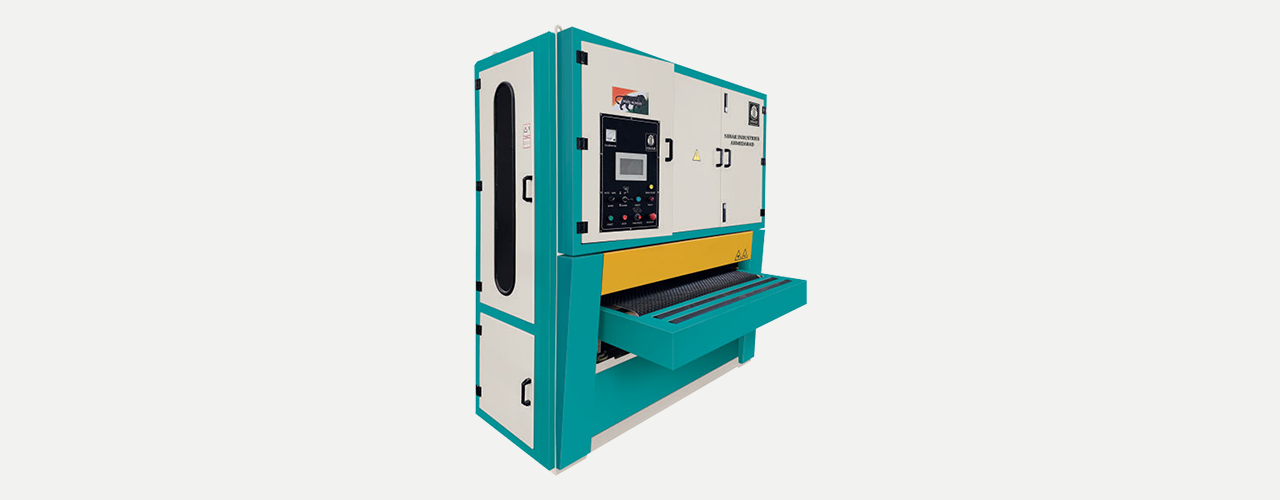

The Wide Belt Sander Machines created by Nihar Industries are some of the best in the industry as they are capable of offering substantial output every time. They are also suitable for projects that come with major customization requirements.
| Description | Single Head Calibrator |
|---|---|
| No of Head | One Dia – 290 mm Steel Roll |
| Working Width | 200mm – 1250mm |
| Working Thickness | 6mm to 60mm |
| Calibrating Head | 30 KW (40 HP) |
| Calibrating Belt Size | 2620 mm x 1330 mm |
| Feeding Speed | 5 – 40 m/Min |
| Feeder Motor | 4 KW (5 HP) |
| Brush Motor | 0.75 KW (1 HP) |
| Up/Down Motor | 0.75 KW (1 HP) |
| Total Power | 35.5 KW (47 HP) |
| Working Pneumatic Pressure | 0.4 to 0.8 Mpa |
