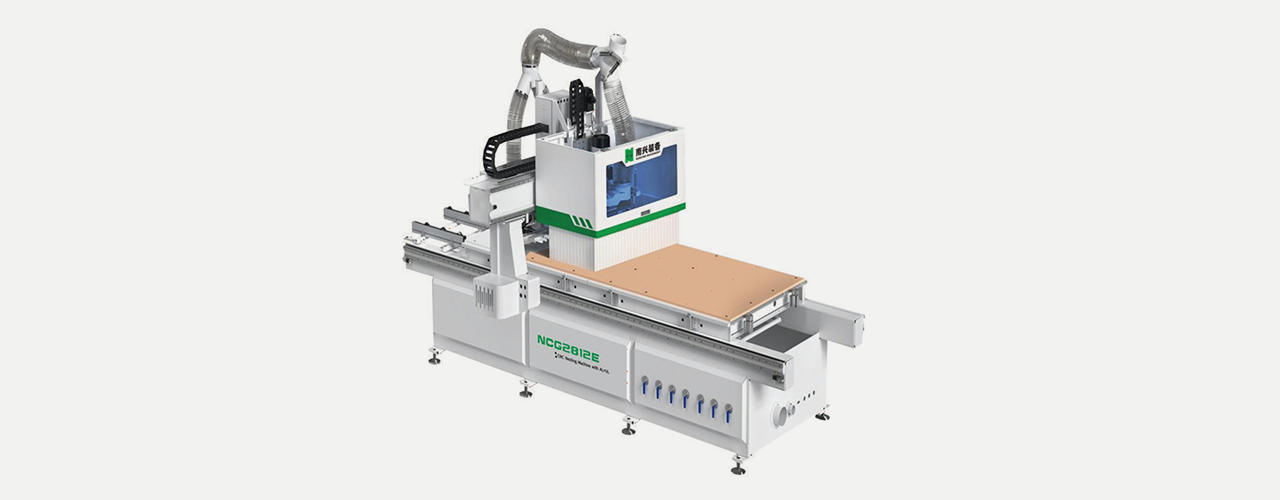

CNC Nesting Machine

Request A Quote Download Catalogue

Technical Specification

*Specifications are subjected to change without notice.
Description	NCG-2812E
Control System	SYNTEC
Working Range	X-axis: 2800 mm	Y-axis: 1220 mm
Working Range	Z-axis: 50 mm	-
Working Table	Size:2,800 x 1,220 mm	Height: 950 mm
Max. Traveling Speed	X-axis: 100m/min	Y-axis: 100m/min
Max. Traveling Speed	Z-axis: 20m/min	-
Main. Spindle	Quantity: 1	Rotating Speed 24,000 RPM
	Power: 9kW
	Tool Holder Type: ISO30
ATC	Line Tool Changer with 12 Slots
Vacuum Pump	Quantity: 2
Vacuum Pump	Power: 7.5kW	Suction flowrate: 250m³/h
Dustextraction	Outlet: Ø150 mm1 Ø125 mm1	Speed Required: 28m/s
Air Supply	Air Pressure Required 6~7kg/cm²
Power Supply	Voltage: 415V	Frequency:50Hz
Total Power	23 kW
Floor Space	LxWxH: 4,220 x 2,270 x 2,500 mm
Net Weight	2,500kg

Silent Features

NCG2812E is a CNC machine made flexibly easy for sizing and drilling, it is usable for 4x8'and 4x9' panel. The machine has completed with drilling, grooving, cutting panel in line and shape. With this type of processing work can save space, labor force but without compromise in accuracy and efficiency.
