| Description | PT-310B |
|---|---|
| Feed Speed | 7m/min |
| Cutter Block Speed | 5500 RPM |
| Cutter Block Diameter | 70 mm |

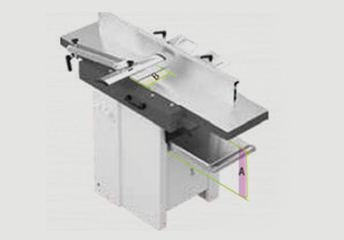

| Max Thickness Height | 4-225 mm |
| Max thickness Width | 310 mm |
| Min length of workpiece | 160 mm |
| Depth Indicator | Scale |
| Cutter Head | 2 Slot Spiral Cutter Head 34pcs/15x15x2.5mm |

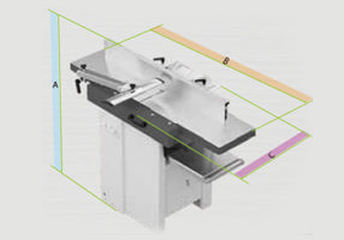

| Over Length of Planer Tables | 1410 mm |
| Thickness table size | 545 x 307 mm |
| Extractor Port Dia | 100 mm |
| Cutting Motor Output | 3*400V 2.2kw 51 |

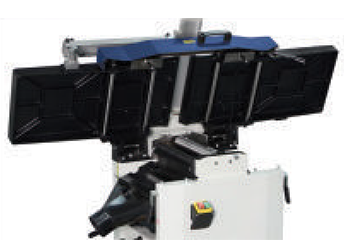

Single Handed table lift, switching from surface planning to thicknessing cannot be easier

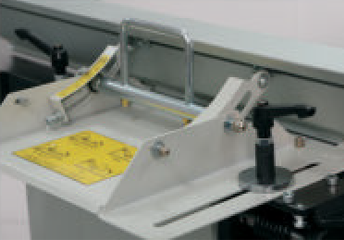

Centered controls and cam looking fence for
quick adjustment

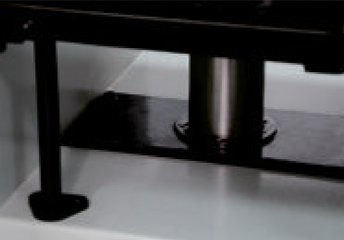

Study central column for superior stability and easy rise
and fall adjustment

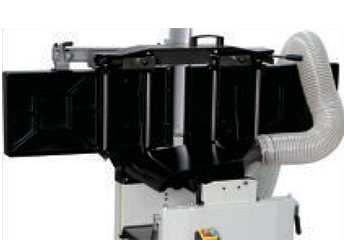

Built-in dust chute capable of handling both planning and thicknessing operations
Nihar Industries is synonymous with wood crafting machineries. We excel in manufacturing machineries required in wood Cutting, Polishing, Pressing, Fabrication and Engraving.
