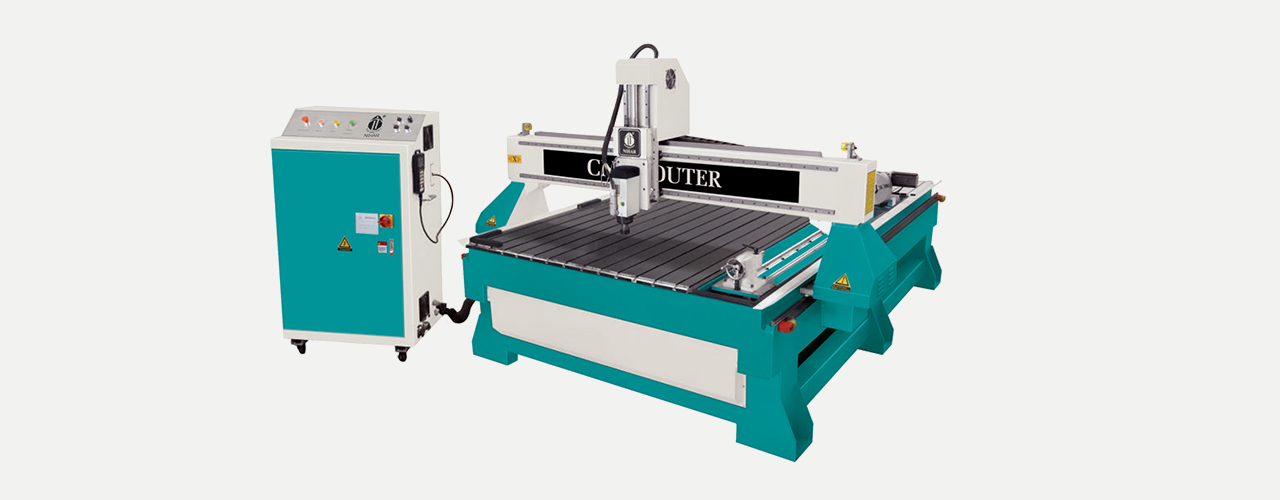

CNC Router Machine with Rotary Attachment

Request A Quote Download Catalogue

Technical Specification

*Specifications are subjected to change without notice.
Description	NR 115 R
X-Y-Z Axis Movement	1300 x 2500 x 300 mm
Repositioning Accuracy	0.01 mm
X-Y Movement	Taiwan Rack & Pinion Transmission
Z Movement	German Ball Screw
X-Y-Z Movement	Through Japanese Planetary Gear Box
Table Size	1440 x 3040 mm
Max Idling Speed	35m/min
Max Cutting Speed	25m/Min
Working Voltage	3 Ø / 380V / 50 HZ
Spindle (Air Cooled Italian HSD Spindle)	6HP, 0-18000 RPM
Drive Motor	Servo
Command	G Code (.mmg, .plt, *.tap)
Computer Interface	USB
Cable & Cable Guide	“IGUS” German
Controls	NK-105 / NC Studio
Collet Type & Size	ER 32 (3mm, 6mm, 12mm)
Work Piece Holding	Manual T - Slot Clamping
Vacuum Clamping	Optional
Rotary Job Size	Max. Dia. 150mm X1500mm

Silent Features

Whole Steel structure, Taiwan Linear Square orbit, Gear Rack for X Y axis, German Ball Screw for Z axis. Advance NK105 System.
Artcam, Type 3 and Wentai Software Support.
Option available with Italian HSD Spindle for long life maintenance free accurate operations.
High Speed servo motor. Two for Y axis, and one for Each X & Z axis.
Auto Oiling and aligning system.
