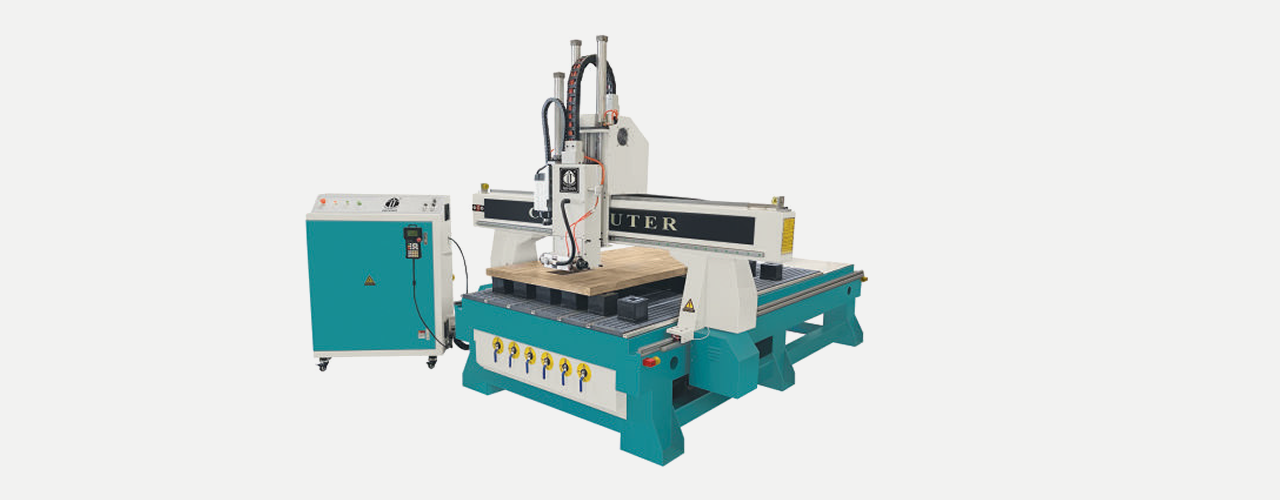

| Description | NR - 115 D | NR - 115 D plus |
|---|---|---|
| Stroke Range | X axis 1300 mm Y axis 2500 mm Z axis 200 mm |
X axis 1300 mm Y axis 2500 mm Z axis 200 mm |
| Working Table | 2 Nos | 2 Nos |
| Structure | Strong seamless steel structure | Strong seamless steel structure |
| X, Y, Z structure | X, Y Helical rack and pinion with Gearbox, Z TBI ball screw | X, Y Helical rack and pinion with Gearbox, Z TBI ball screw |
| Idle speed | ≥ 32000mm/min | ≥ 32000mm/min |
| Working Speed | ≥ 15000mm/min | ≥ 15000mm/min |
| Spindle | Italian HSD Air Cooled Spindle 6 KW spindle. 0-18000rpm/min speed, ER 32 Collet Size | Italian HSD Air Cooled Spindle 6 KW spindle. 0-18000rpm/min speed, ER 32 Collet Size |
| One horizontal 3.5kw air cooling spindle with 90 Degree automatic rotation along with two tools, ER 25 collet, 0-18000rpm | One horizontal 3.5kw air cooling spindle with 90 Degree automation rotation along with two tools, ER 25 collet, 0-18000rpm | |
| Operating System | Original NK105G3 control system | Original NK105G3 control system |
| Drives & Motors | Servo Motor & Drive | Servo Motor & Drive |
| Working Voltage | AC 380V 3 Phase | AC 380V 3 Phase |
| Guide Rail | Taiwan HIWIN 25 Linear Guide Rail | Taiwan HIWIN 25 Linear Guide Rail |
| Cable & Cable Guide | Germany IGUS with IGUS cable tray | Germany IGUS with IGUS cable tray |
| Command Code | G code, HPGL, U00, mmg, Plt | G code, HPGL, U00, mmg, Plt |
| Software Support | Artcam software & Alphacam software support | Artcam software & Alphacam software support |
| Clamping | Vacuum Clamping with 7.5 Kw Air Vacuum Pump | Vacuum Clamping with Movable Vacuum beam and 7.5KW Vacuum pump |
| Two spindles can use two different tools for two different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools. The vertical spindle can do engraving/cutting/drilling/milling. The horizontal spindle can do Left and Right Side drilling/milling. | Two spindles can use two different tools for two different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools. The vertical spindle can do engraving/cutting/drilling/milling. The horizontal spindle can do left, Right, Top and Bottom side drilling/milling. | |
| Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the Structure bodyis stabilized and will not be deformed forever. | ||
| X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force. | ||
| Z axis adopts imported Germany Ball Screw, so high precision for long life usage. | ||
| Three axes adopt Taiwan make HIWIN linear guide rail with high precision. | ||
| This machine has the function of re-carving after break point or power failure. | ||
| High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. | ||
