| Description | TH-630A |
|---|---|
| Feed Speed | 4-16m/min (Variable Speed) |
| Cutter Block Speed | 5500 RPM |
| Cutter Block Diameter | 115 mm |
| Max Thickness Height | 5-300 mm |
| Max thickness Width | 630 mm |
| Min length of workpiece | 280 mm |
| Depth Indicator | 8 mm |
| Cutter Head | 4 Slot Spiral Cutter Head 104pcs/15 x 15 x 2.5 mm |
| Thickness Table Size | 1050 x 630 mm |
| Extractor Port Dia | 150 mm |
| Cutting Motor Output | 3*400V 5.5kw S1 |
| Lifting Motor Output | 0.25kw |
| Feeding Motor Output | 0.55kw |

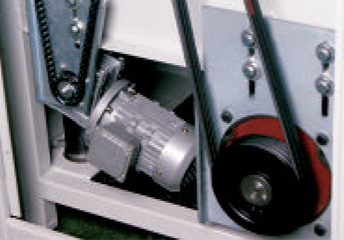

Variable speed infeed by inverter suit for all types
of finish required

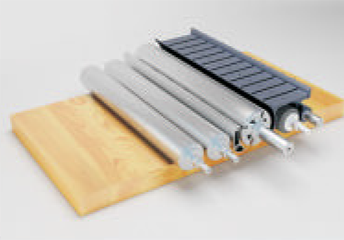

Spring-loaded pressure bars and double outfeed roller prevent vibration of workpieces during thicknessing

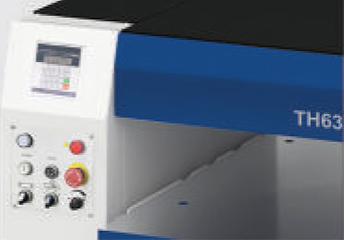

Electronic positioner help to reduce positioning time
and high precision

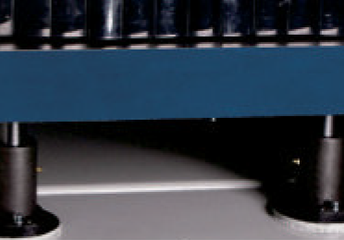

Cast iron table mounted on 4 heavy pillar for excellent support and accurent without any looking
