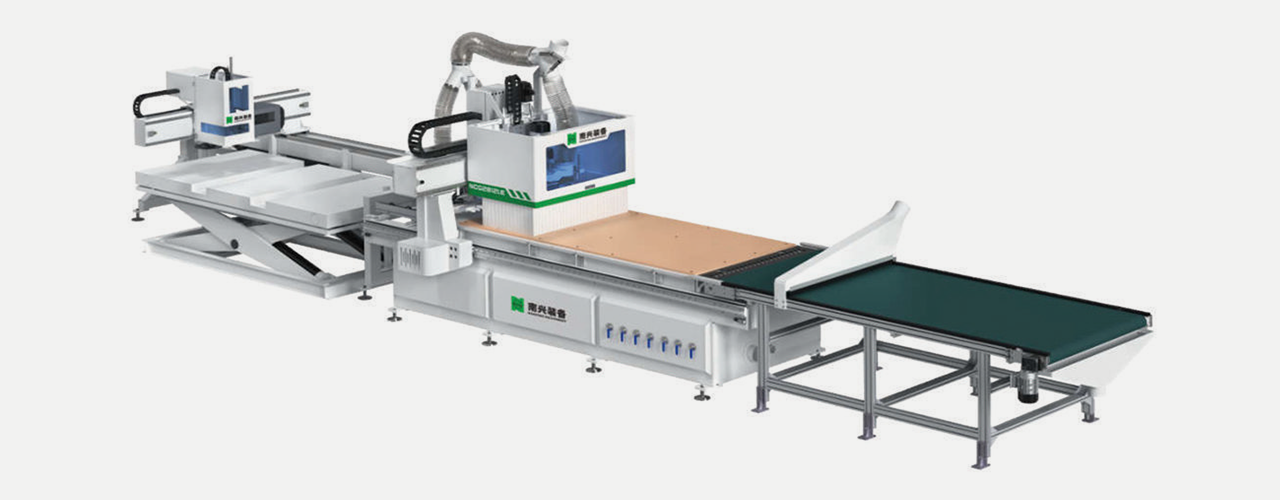

CNC Nesting Machine With Al&ul

Request A Quote Download Catalogue

Technical Specification

*Specifications are subjected to change without notice.
Description	NCG-3021LE
Control System	SYNTEC
Working Range	X-axis: 3000 mm	Y-axis: 2100 mm
Working Range	Z-axis: 50 mm	-
Working Table	Size: 3,000 x 2,100 mm	Height: 1010 mm (with 70mm feet)
Max. Traveling Speed	X-axis: 100m/min	Y-axis: 100m/min
Max. Traveling Speed	Z-axis: 20m/min	-
Main. Spindle	Quantity: 1	Rotating Speed 24,000 RPM
	Power: 9kW
	Tool Holder Type: ISO30
ATC	Line Tool Changer with 12 Slots
Vacuum Pump	Quantity: 2
Vacuum Pump	Power: 7.5kW	Suction flowrate: 250m³/h
Dustextraction	Outlet: Ø150 mm1 Ø125 mm3	Speed Required: 28m/s
Air Supply	Air Pressure Required 6~7kg/cm²
Power Supply	Voltage: 415V	Frequency:50Hz
Total Power	41.5 kW
Floor Space	LxWxH: 13,900 x 3,260 x 2,600 mm
Net Weight	7,700kg

Silent Features

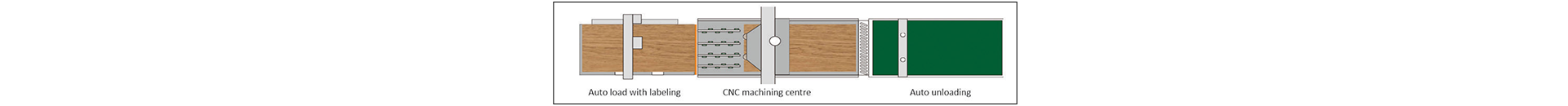

NCG3021LE is a CNC machine made flexibly easy for sizing and drilling, it is usable for different panel size. The machine has completed with labeling, infeed, drilling, grooving, cutting panel in line and shape, and unloading. This means the combination of automation, intelligence, and IT in production. Open port is equipped to link with furniture software in following the preset data for processing work. With this type of processing work can save labor force but without compromise in accuracy and efficiency.
