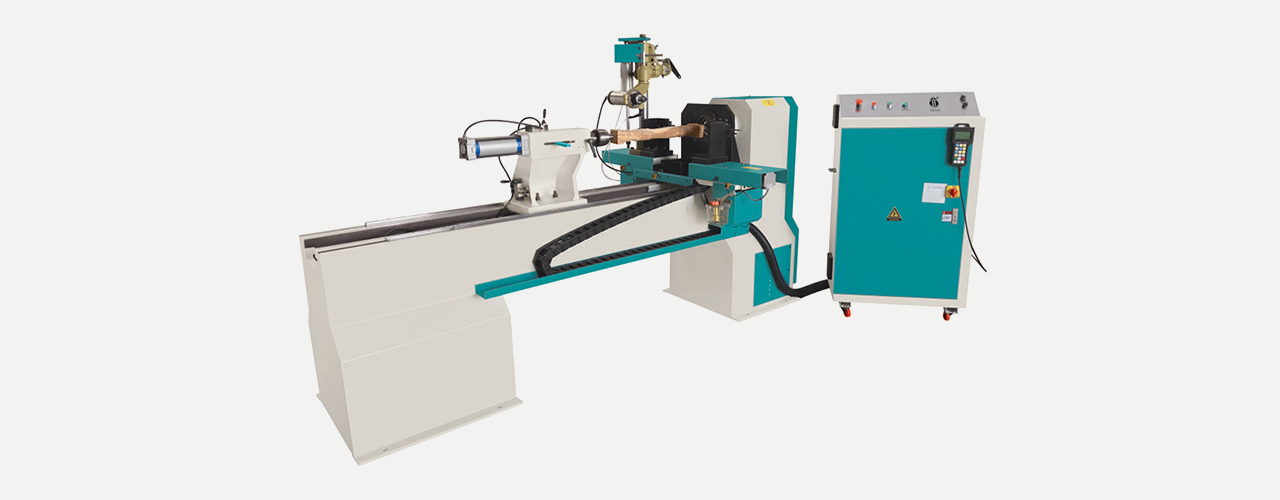

CNC Wood Turning Lathe

Request A Quote Download Catalogue

Technical Specification

*Specifications are subjected to change without notice.
Description	NR – 147
Working Job Size (Max.)	Dia 300mm x 1500mm
Working Job Size (Min.)	Dia 20mm x 200mm
Repositioning Accuracy	±0.05mm
X-Y Movement	Taiwan Rack & Pinion Transmission
Z Movement	German Rolling Ball screw
Working Voltage	3Ø / 380 V / 50 Hz
Motor Power	4KW (Variable Speed 0-3500 RPM)
Spindle Power	2.2 KW Air Cooled (0-18000 RPM)
Working Speed	4000 mm/min
Drive Motor	Stepper
Command	G Code (.mmg, .tap, *.plt)
Computer Interface	USB
Controls	NK 105
Collet Size	6mm, 8mm, 12mm
Computer Interface	Turning / Cylindrical Surface Carving / Flat Surface Carving

Silent Features

High quality castiron body machine.
NK105 control system which with USB connection operated with the handle, convenient operation.
Has the function of re-carving after break point and power failure and forecasting process time.
Perfect oil-inject system makes maintenance much easier.

Application

Staircase column
Chairs legs
Cylindrical, Conical carving
Flat surface carving.
